SR DS70239 Four-wheel CCT (Covered Carriage Truck) Built 1931

SR DS70239 Four-wheel CCT (Covered Carriage Truck) Built 1931

Present Location Isle of Wight
County Location Isle of Wight
Designed For SR
Build Location Ashford
Built By SR
First Number 2373
Later Numbers S2373S DS70239
Present Number DS70239
Owner Isle of Wight Steam Railway
Diagram Number 3101
Lot Number 468
External Structural Condition Fair
Internal Structural Condition Fair
Underframe Condition Good
Operating No
Stored Secure Open
Gauge 4ft 8 1/2in
Rarity Many
Importance No Immediate Importance/Not Applicable

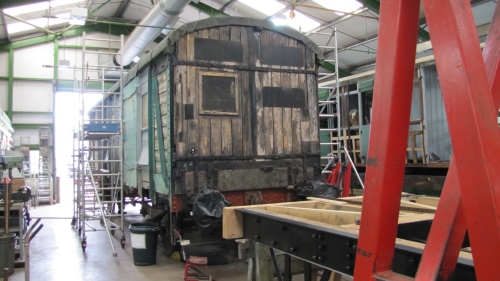

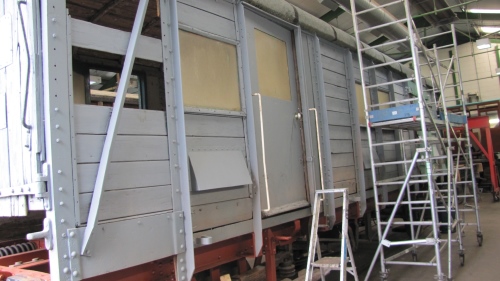

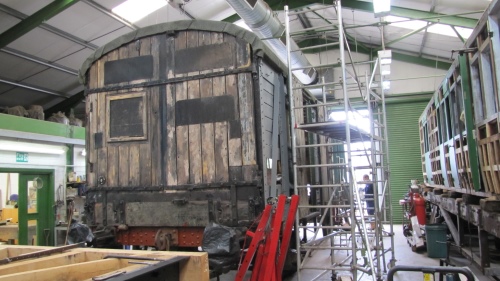

Additional Notes CCE Staff & Tool Van at Eastleigh Pre-Assembly Depot throughout 1990s. P 2005 at Isle of Wight Steam Railway. 08/22: conversion work now in progress - intention is to remove the underframe and use it at a later date, whilst the body is to be grounded for use as a store, painted in SR malachite green livery. 06/26: located outside C&W Works.
Inspected By Kevin Stroud
Date Inspected 24/07/2005
Main Photo Taken By Ken Hartley
Date of Image 28/08/2022
At Risk No
Record Last Updated 27/08/2026

Ken Hartley 28/08/2022

Ken Hartley 28/08/2022

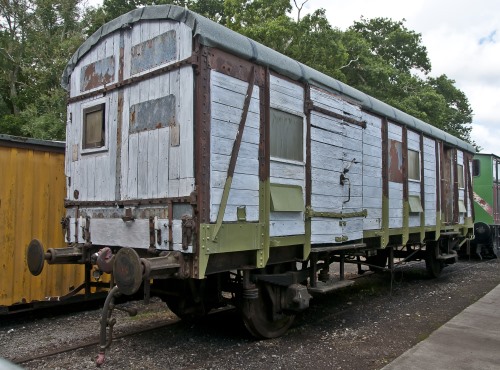

Steve West 22/07/2015: earlier condition
